WSA - Weather Shield
Chimney Caps

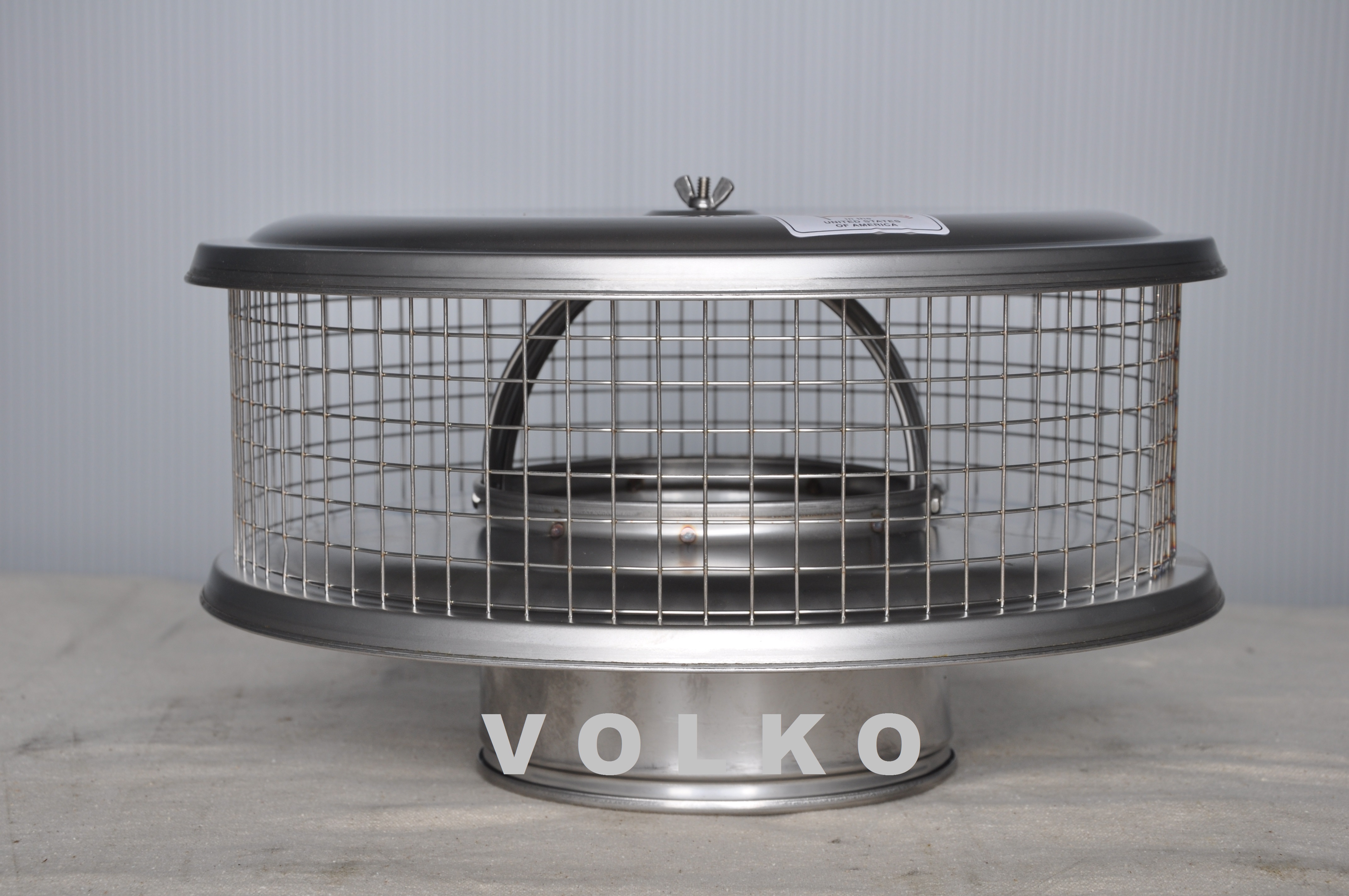

- WSA Weathershield caps were designed as a replacement
cap for Class A chimneys with solid pack insulation.

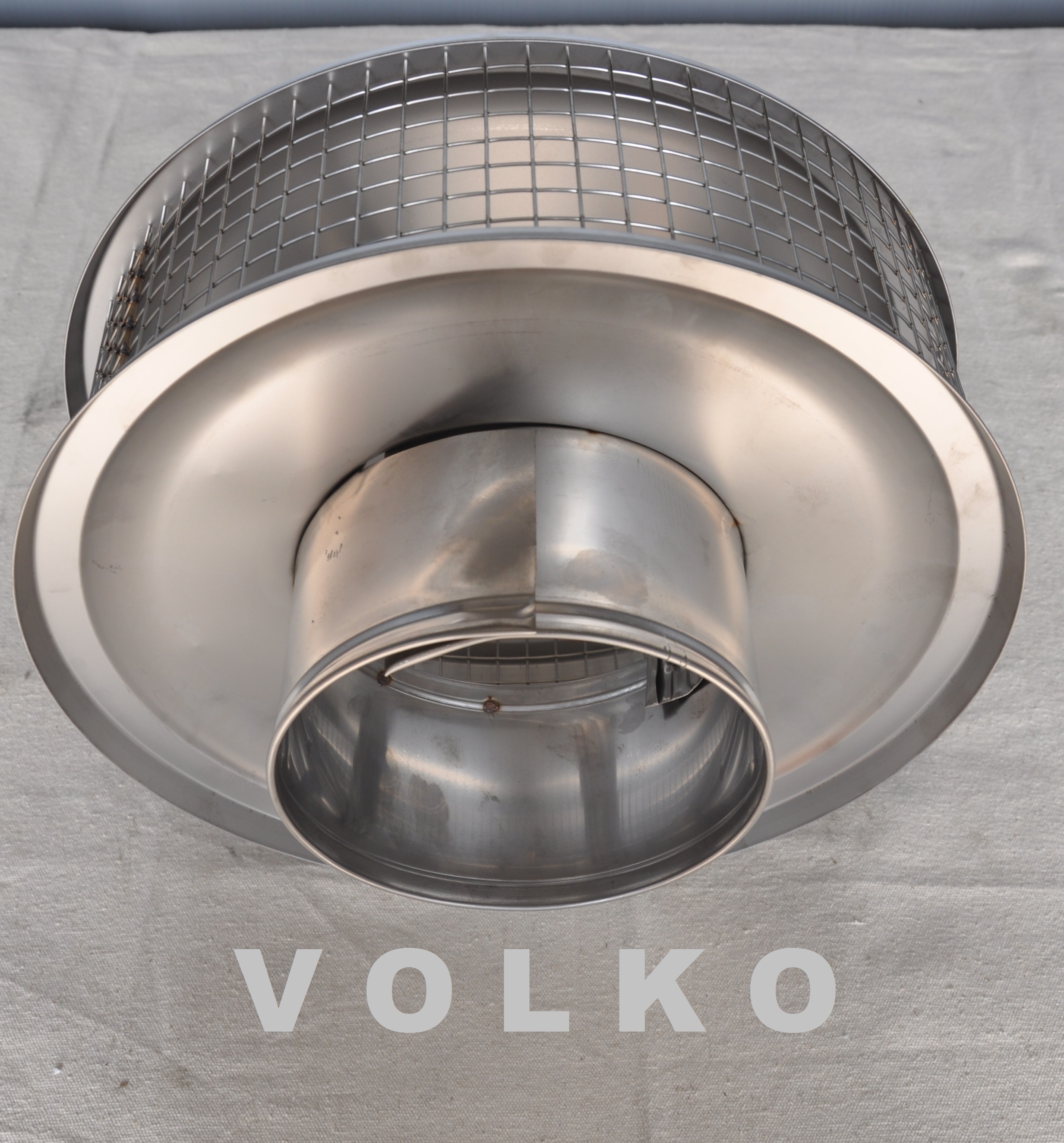

- Tight friction fit
allows this cap to slip down inside the chimney securely. Available with
1/2" spark arrestor mesh.
|
WSA for Round Chimneys
For round single wall metal chimneys, masonry
chimneys, chimney liners and solid pack insulated chimneys. Fits square
and rectangular chimneys with adaptor.
|
|
| |
|
|
|
| WSA-3 |
3 inch diameter |
 |
| WSA-4 |
4 inch diameter |
| WSA-5 |
5 inch diameter |
| WSA-6 |
6 inch diameter |
| WSA-7 |
7 inch diameter |
| WSA-8 |
8 inch diameter |
| WSA-9 |
9 inch diameter |
| WSA-10 |
10 inch diameter |
| WSA-12 |
12 inch diameter |
| WSA-14 |
14 inch diameter |
WSA- TDW Weather Shield
Air Cooled
Chimney Caps
CAUTION: An Air Cooled Cap
must be used for Air Cooled Pipe.
DO NOT attempt to use a standard WeatherShield for air cooled
pipe.
Not sure if you have an
air cooled pipe system... call or e-mail us.
|

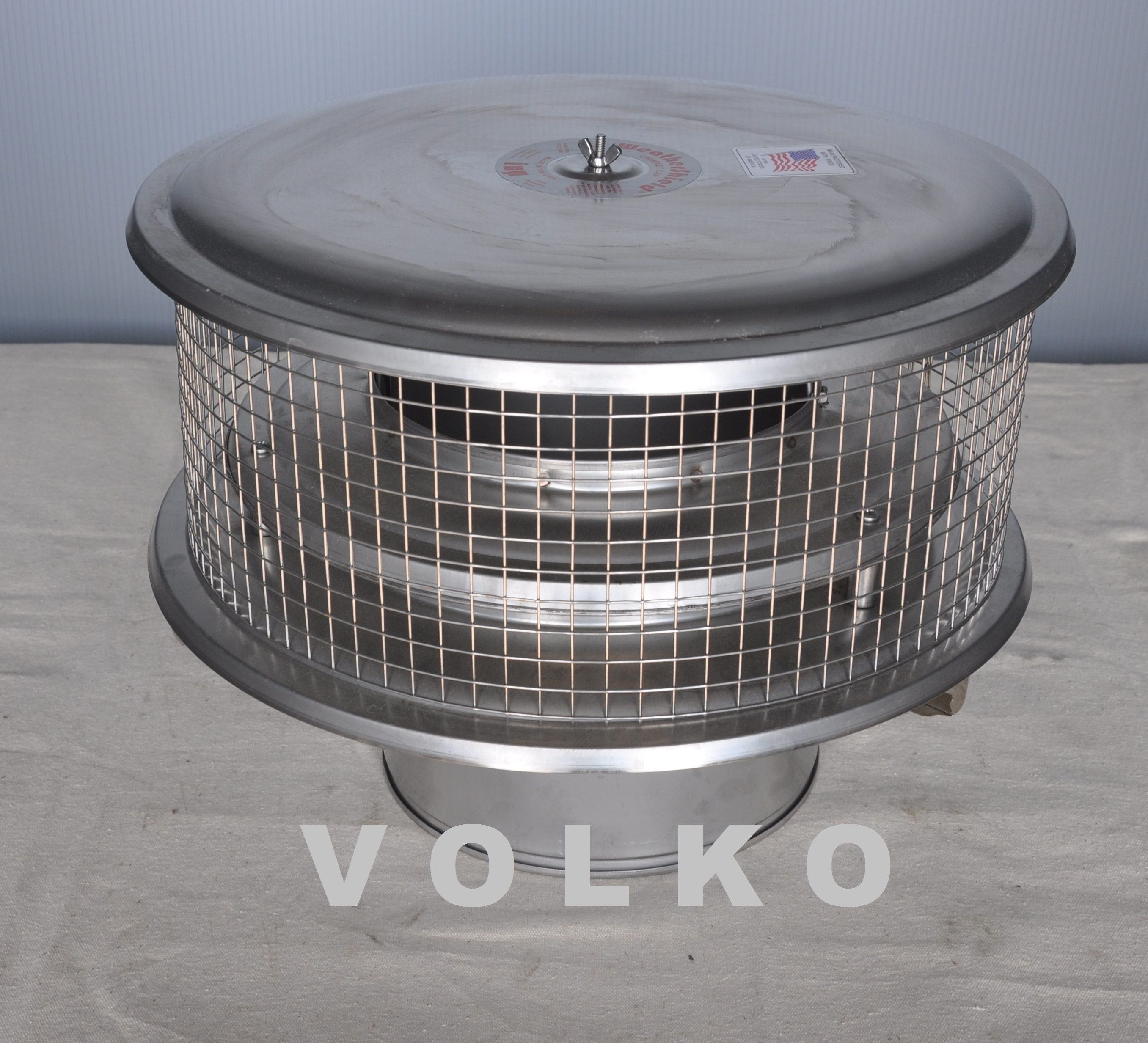

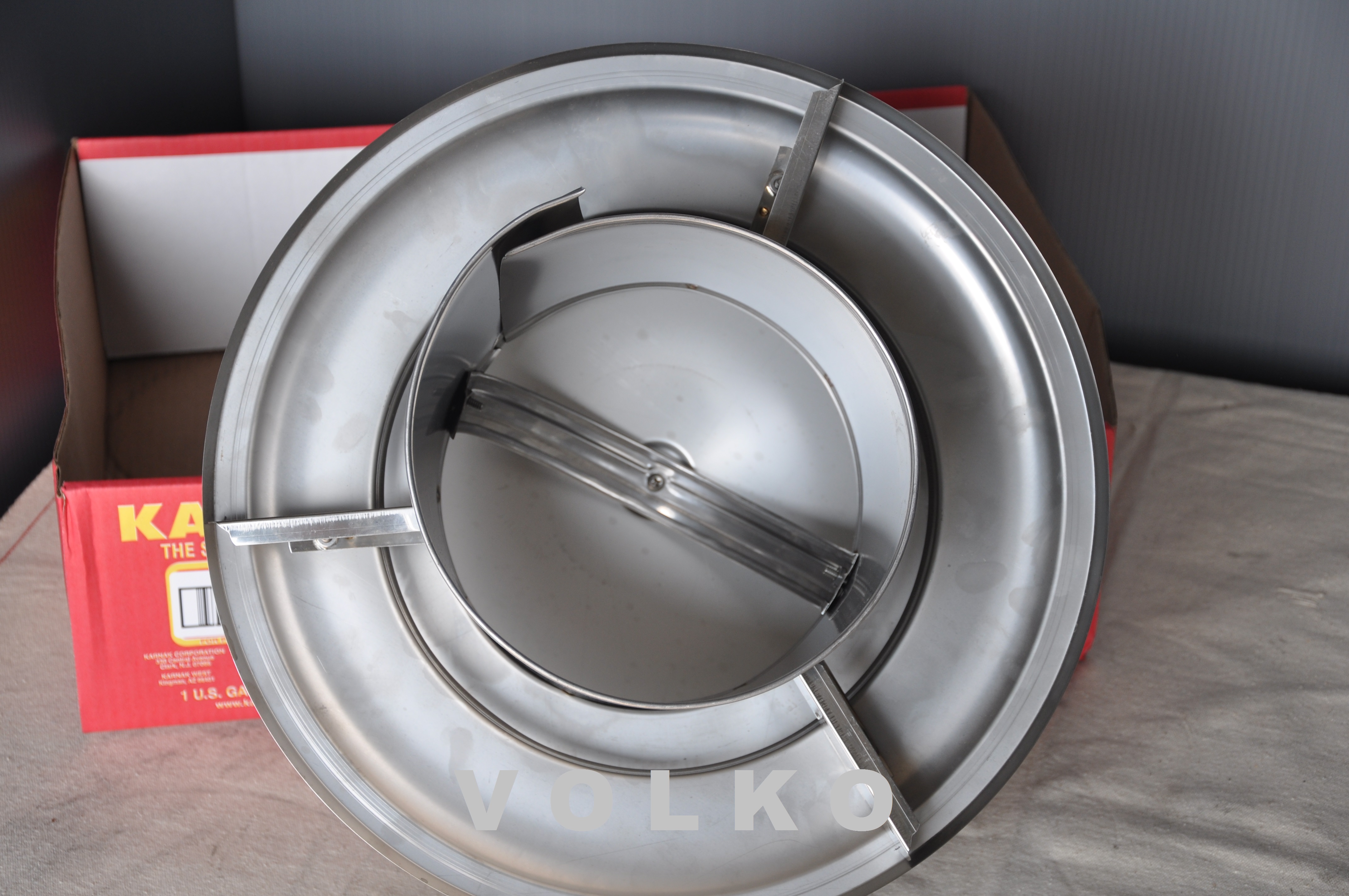

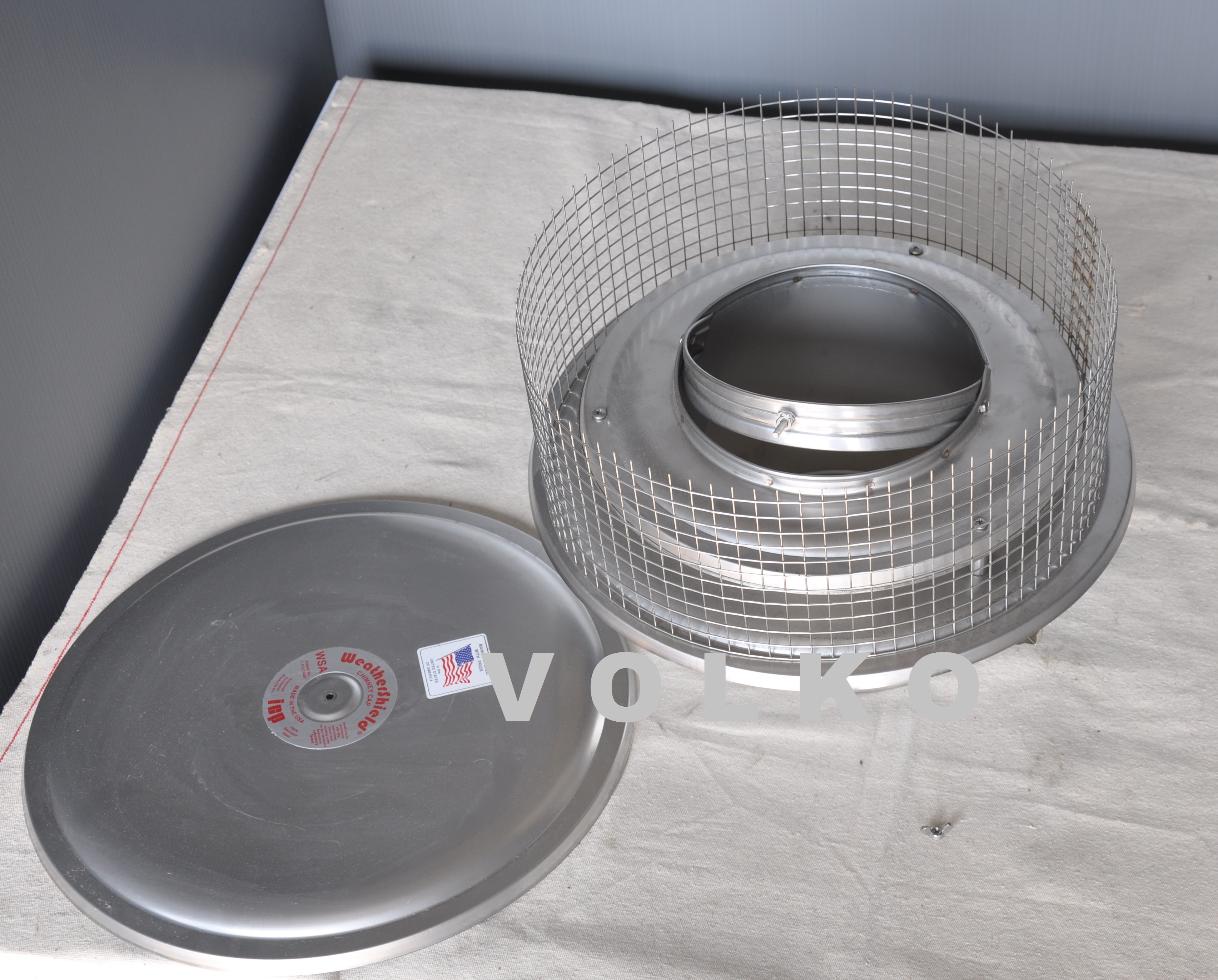

WSA TDW for Air Cooled Chimneys
Designed exclusively for air-cooled chimneys, the TDW
line of Weathershields assures self-adjusting secure wind-resistant fit,
without interfering with the convection cooling features of air cooled
chimneys. The spring tension connector enables the TDW Weathershields to
fit double and triple wall air cooled chimneys
|
|
| |
|
 |
| WSA-6TDW |
6 inch diameter |
| WSA-7TDW |
7 inch diameter |
| WSA-8TDW |
8 inch diameter |
| WSA-9TDW |
9 inch diameter |
| WSA-10TDW |
10 inch diameter |
| WSA-12TDW |
12 inch diameter |
| |
And remember, measure twice order once. |

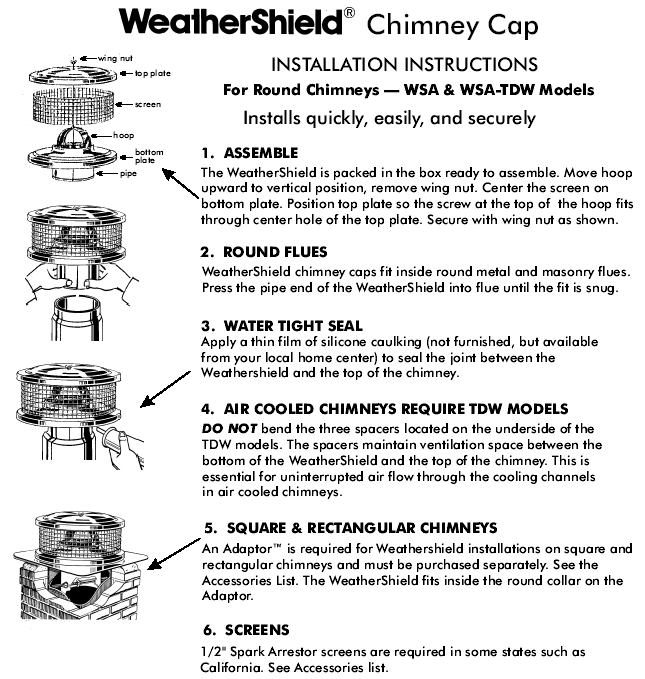

The Weathershield
Chimney Cap is easy to install. It fits directly into round flues. Square and
rectangular chimneys require a stainless steel adapter that is adjustable and
fastens securely to the inside of the flue. Chimneys should be cleaned and
inspected before installation by a chimney professional and must conform with
fire, safety and building codes. Installation instructions are furnished.
 |
 |
 |

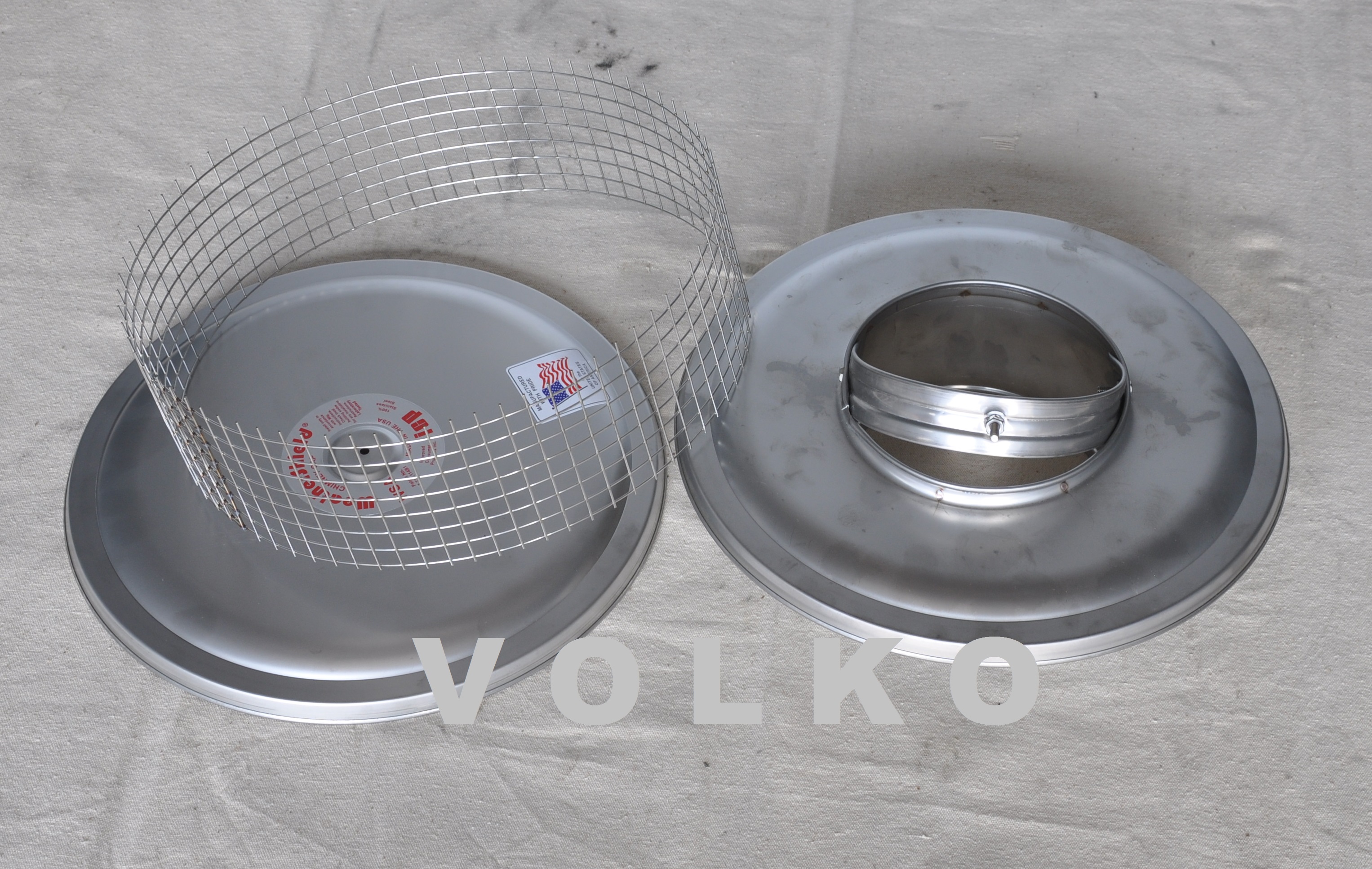

| Easy To Remove Screen |
Easy To Clean and Inspect |
The Weathershield
does not need to be removed for annual chimney cleaning and inspection. Simply
unscrew and remove the top cover and screen, tilt support, and brush directly
through the Weathershield. The top can also be closed against the bottom with an
optional closure kit for sealing the chimney when not in use. Optional 1/2"
screen and top supports are also available.
Weather Shield + Storm Guard = Storm
Shield
 |

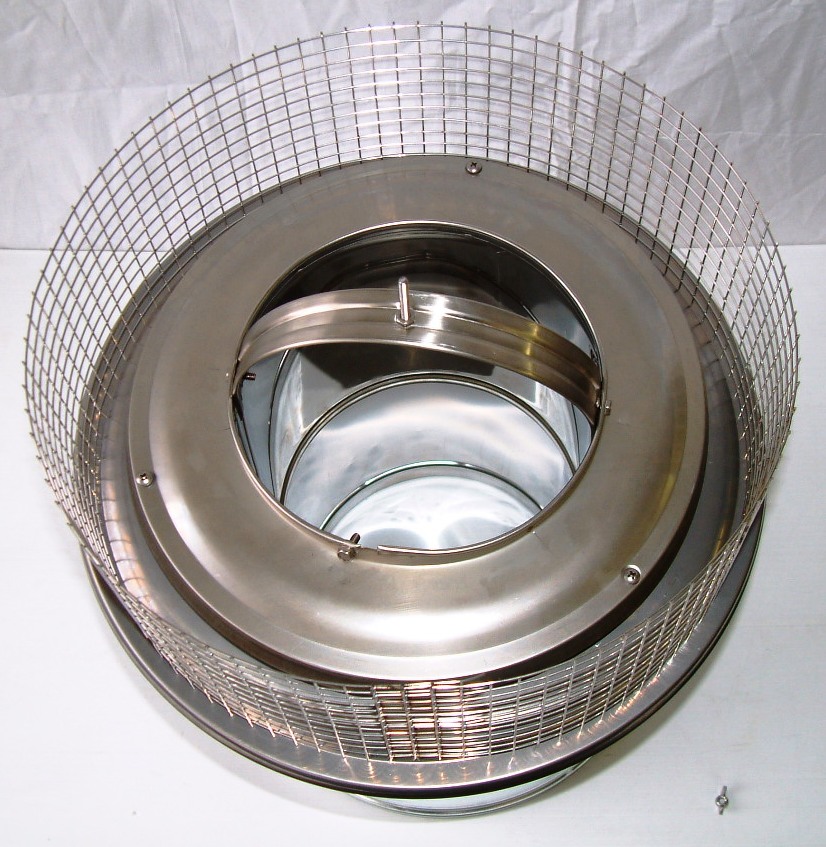

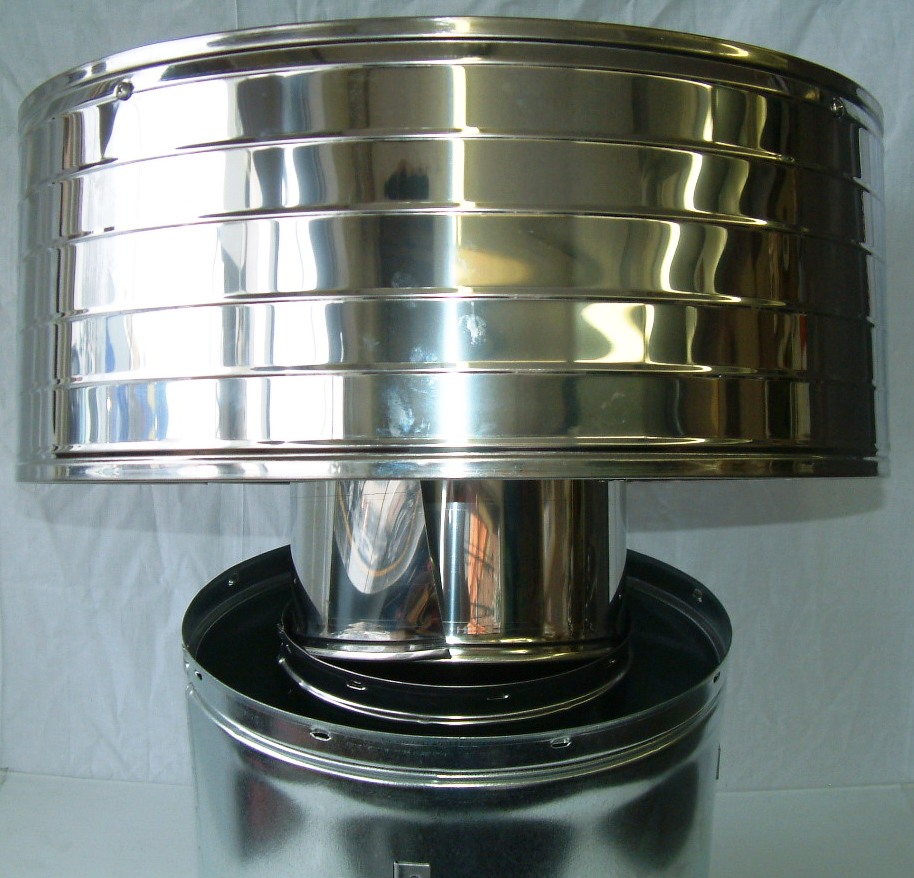

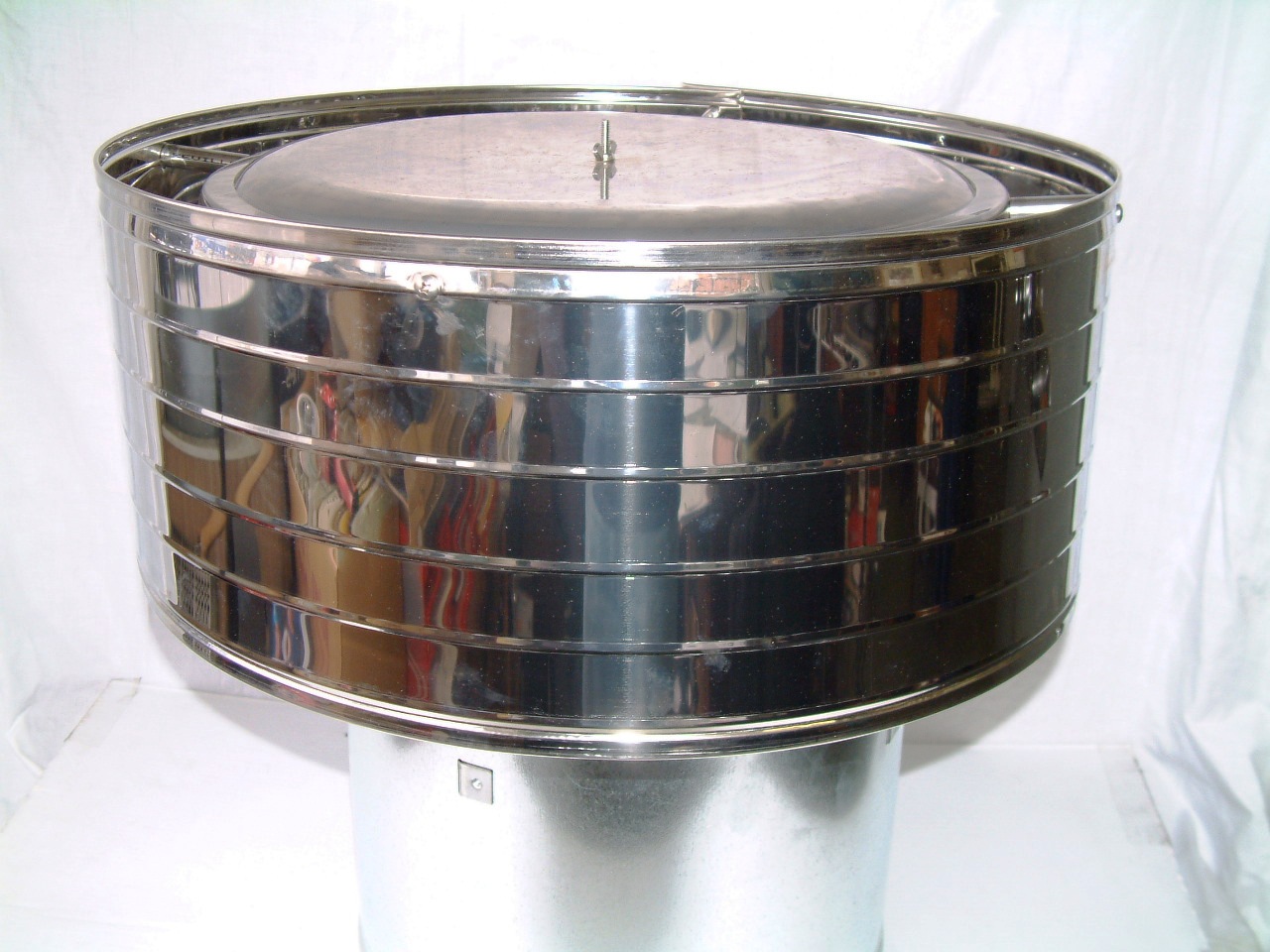

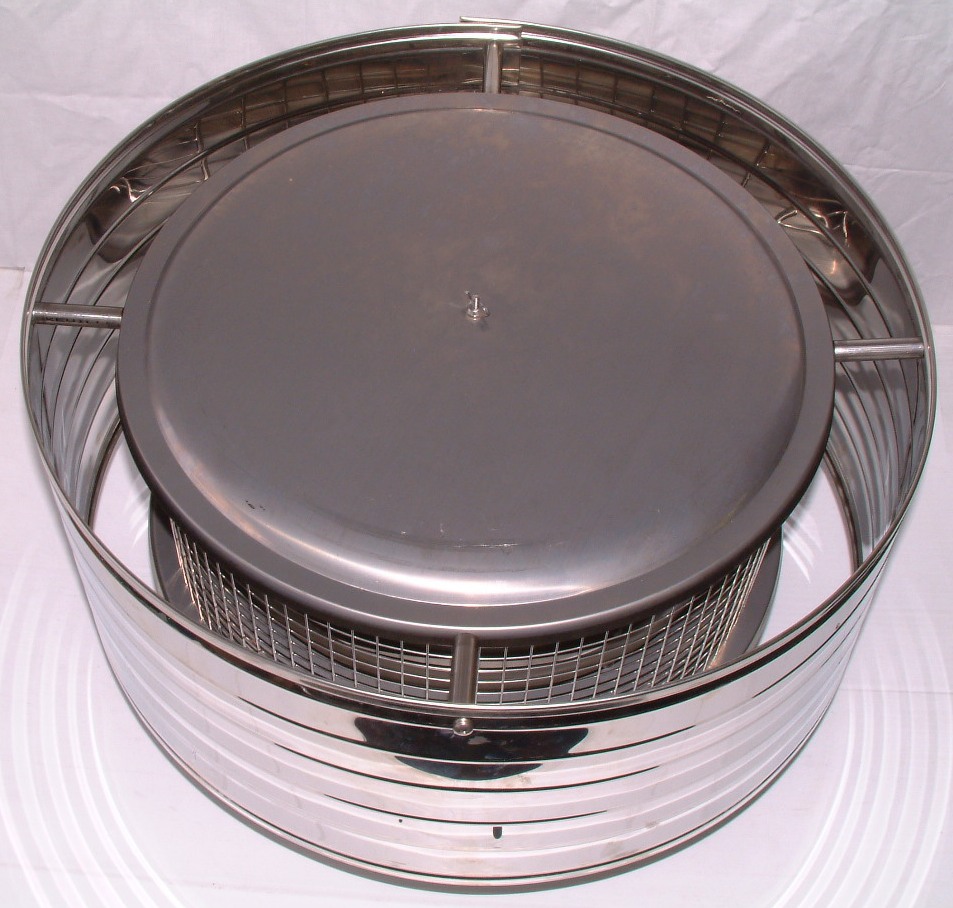

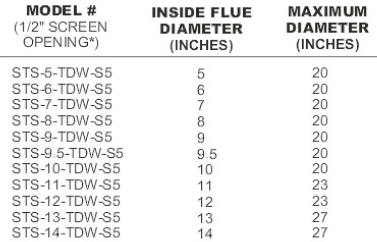

StormShield Model STS-TDW
for air cooled double and triple wall flue pipe
Above are options to fit the
most common air cooled flue pipe sizes.
Please call us to order any other size. |
 |
Ideal cap for coastal locales and areas where wind and wind
driven rain are prevalent.
 |
 |
 |
 |
 |
 |

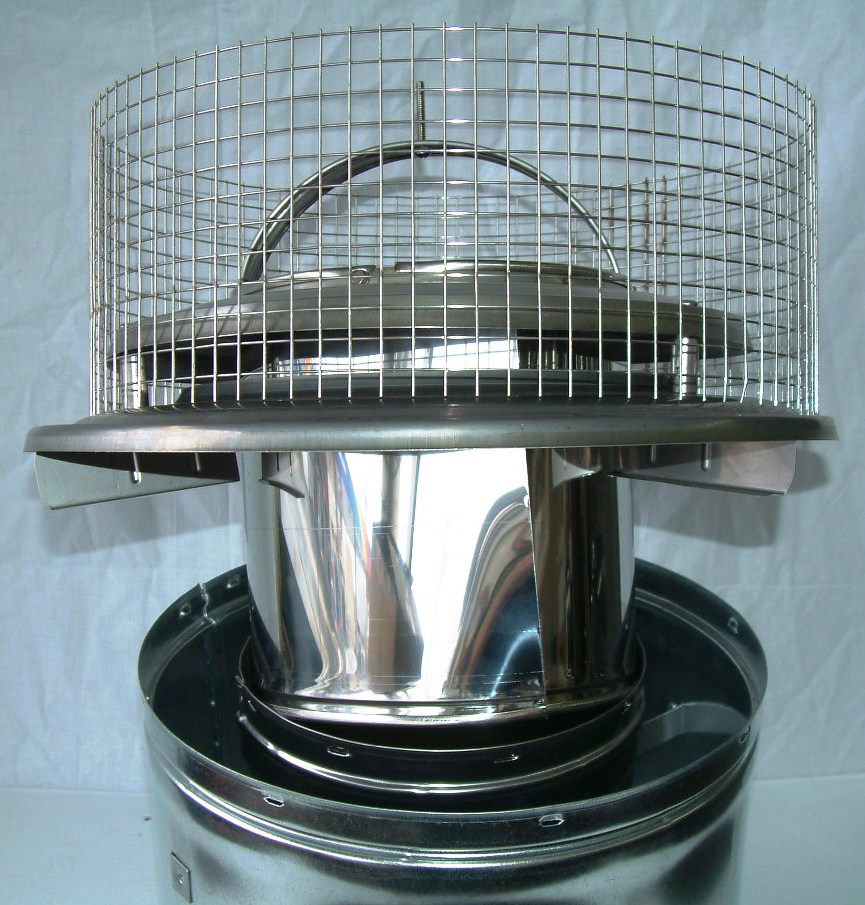

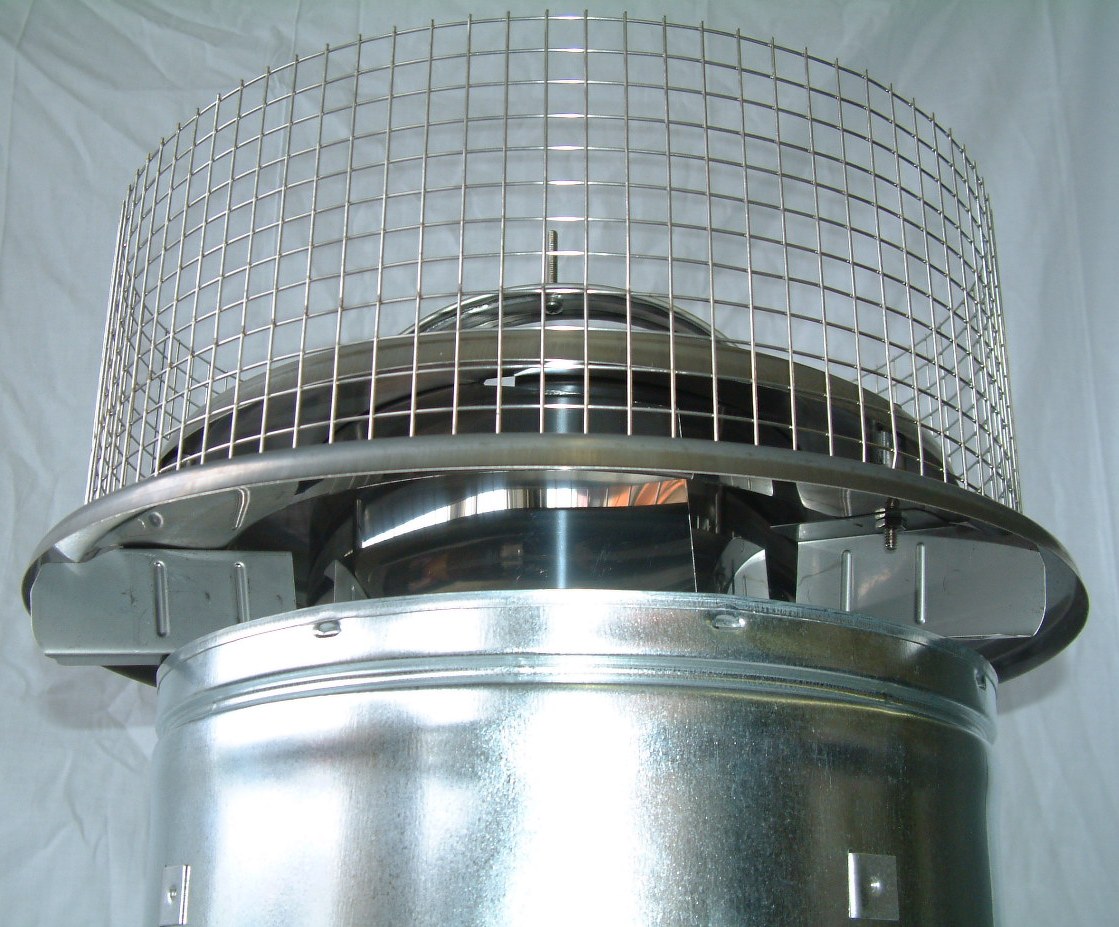

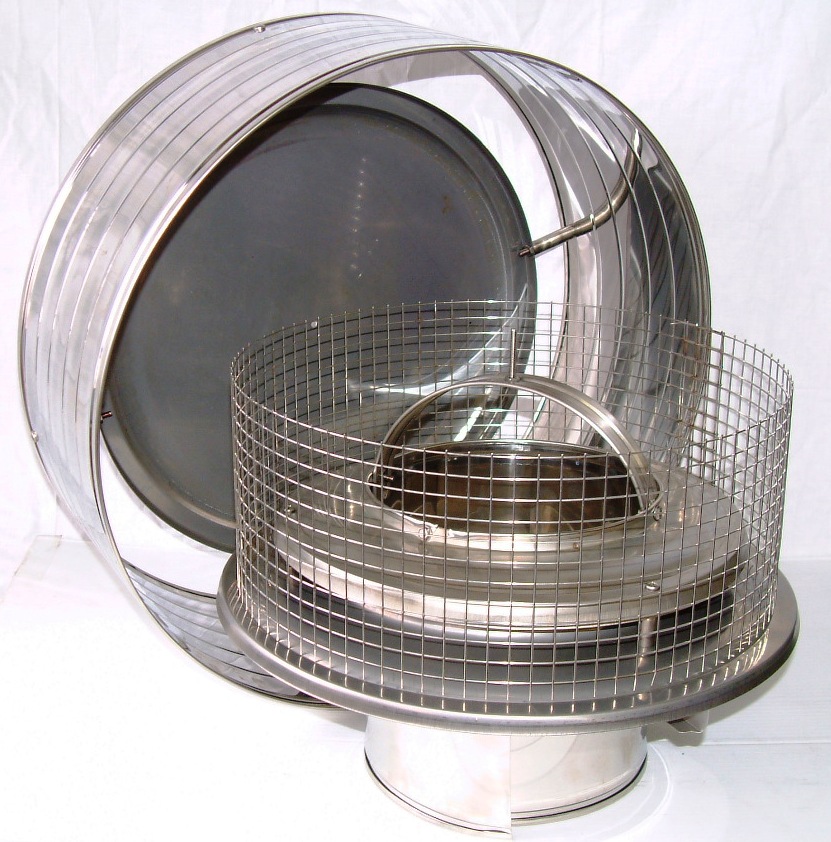

Split collar allows for a secure fit
Easy assembly 100% Stainless |

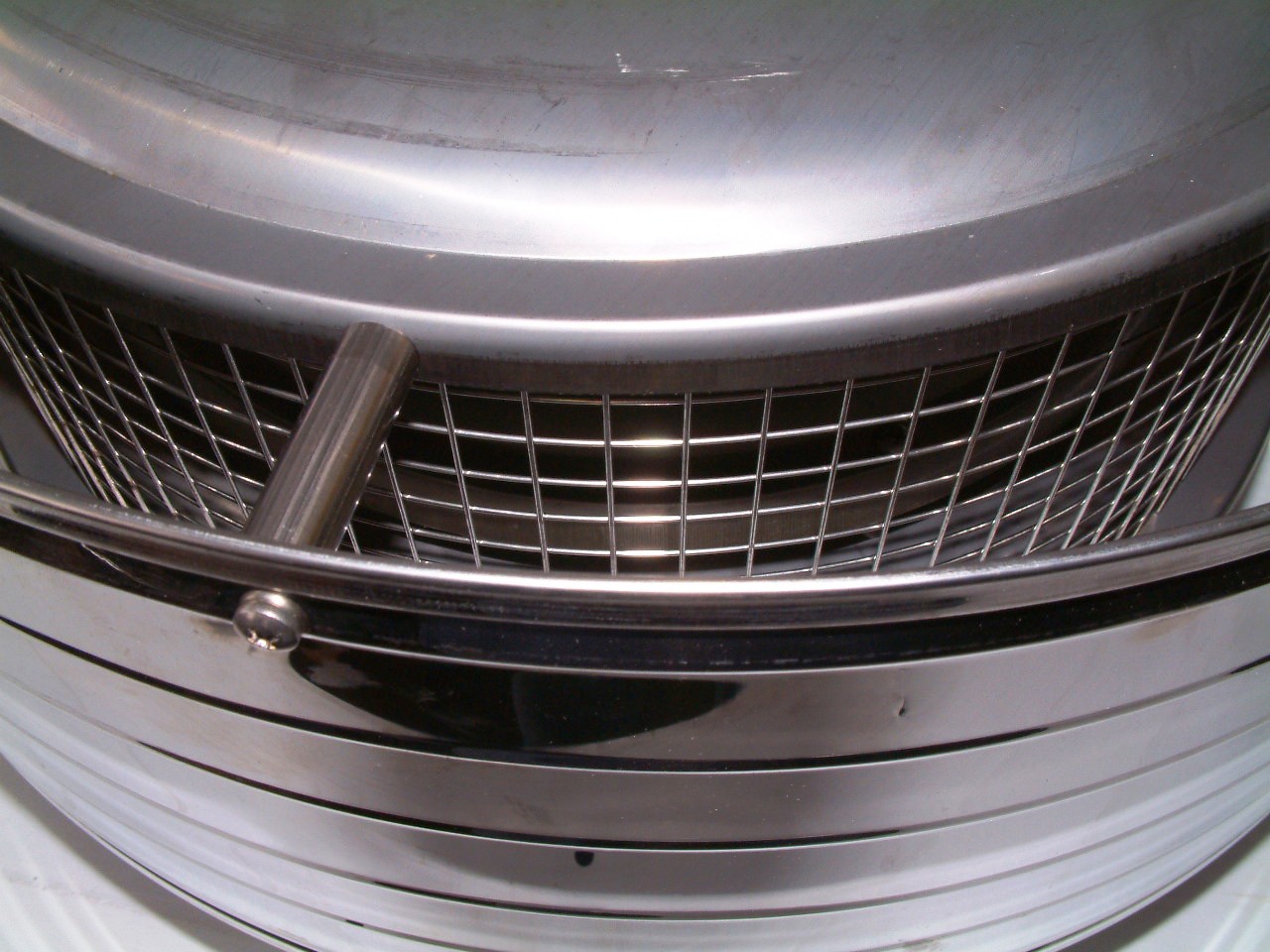

Top w/ Storm Shield is easily removable
for access and cleaning |
Storm Shield protects flue system
from most weather conditions |
|

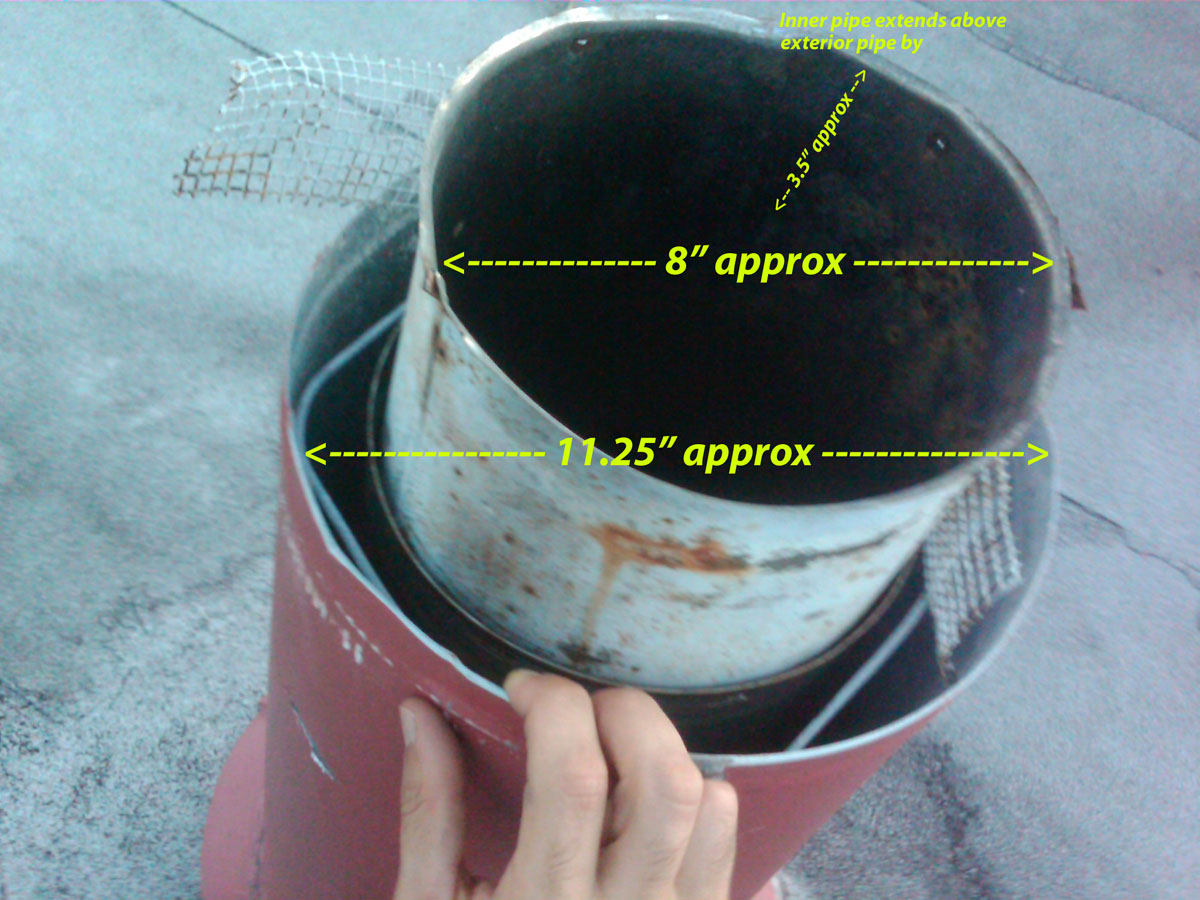

Sizing for
an air cooled StormShield
Air cooled
flue pipe needs to be measured by its INSIDE measurement.

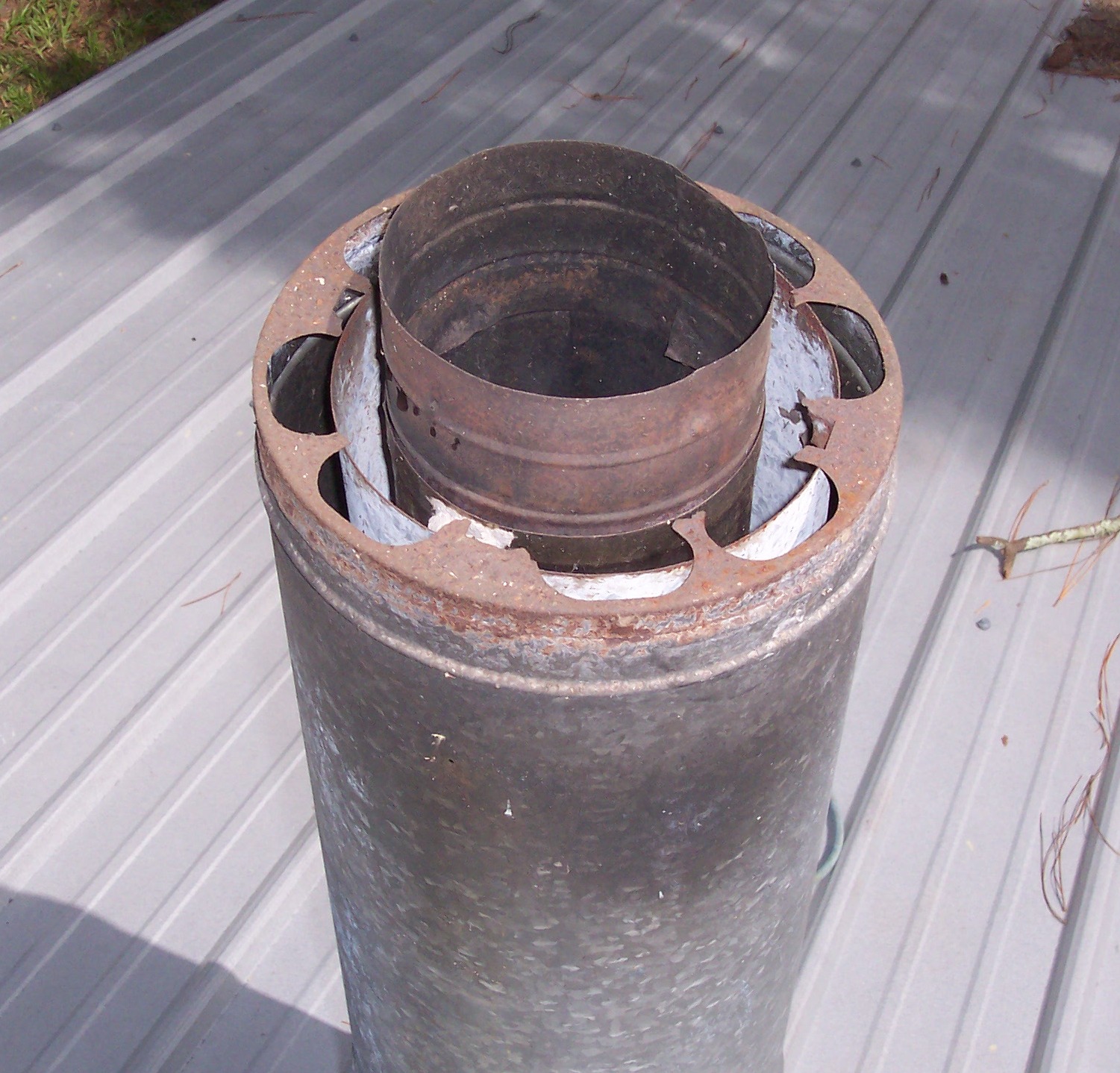

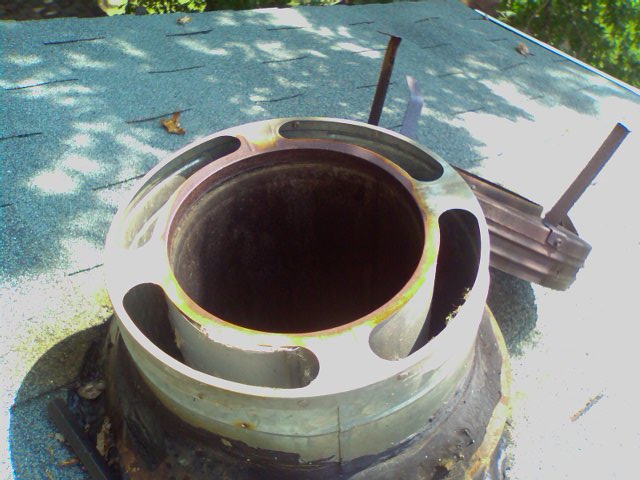

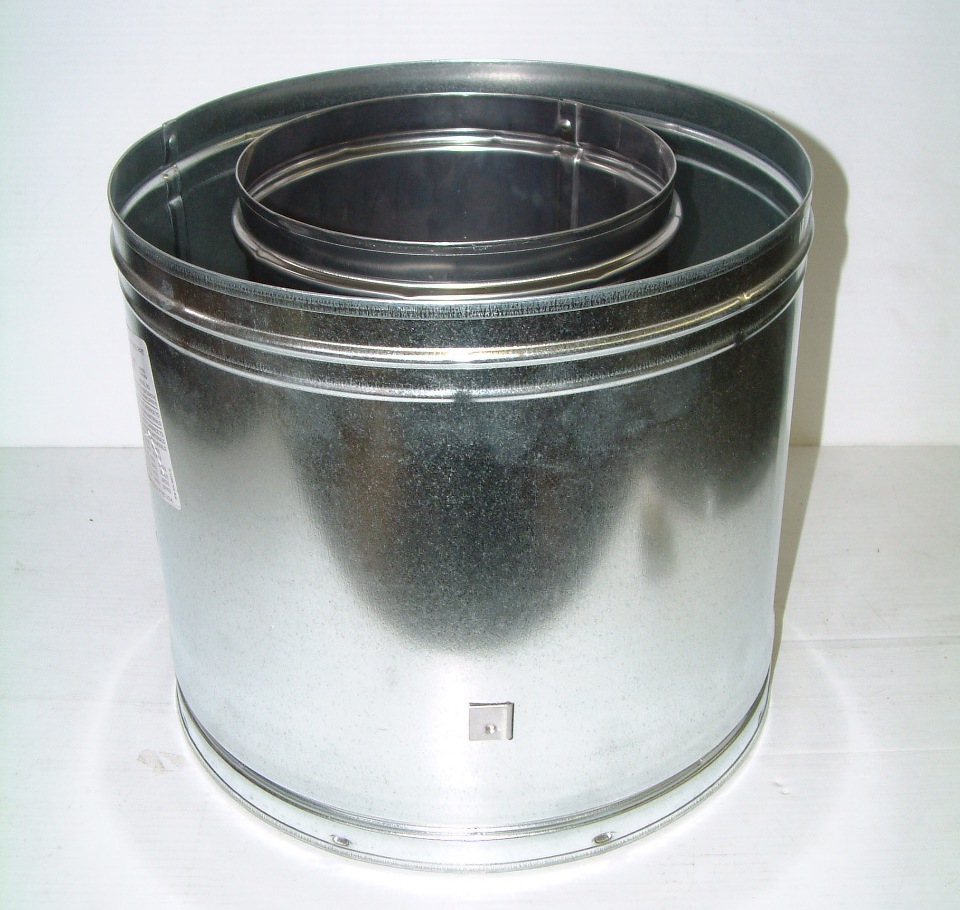

Typically... an air cooled flue system will consist of
an inner and outer pipe(s) with an air space between them. Some
systems may have braces, wire, tabs or smaller openings between the
layer(s) of pipe. The distinguishing factor for this system is
that the spacing channels from the top where the chimney cap would go
all the way to the start of the flue system.
Note: All layers of pipe need to be at the same level
for proper installation. Most pipe can be trimmed or extended to
accomplish this. |
 |
CAUTION: An Air Cooled
Chimney Cap must be used for Air Cooled Pipe.
DO NOT attempt to use a standard STS StormShield Cap with air cooled pipe.
| |
Air cooled double and triple
wall flue systems need an air cooled chimney cap.
The inner pipe of an air cooled system is for smoke
and flue gases.
... the larger surrounding outer pipe(s) will vary in size depending on
the air space between the pipes and manufacturers design.
This air space needs to be
vented to insure the flue systems proper function.
An air cooled pipe system uses the air space as an insulation
value. The more spacing between the pipes, the less heat to the
outer pipe(s), and the closer one can build to the system. |
Call 1-800-685-8263 or e-mail us at
info@volko.com
