Weather Shield + Storm Guard = Storm
Shield
STS & STS-TDW
Ideal cap for coastal locales and areas where wind and wind
driven rain are prevalent.
 |

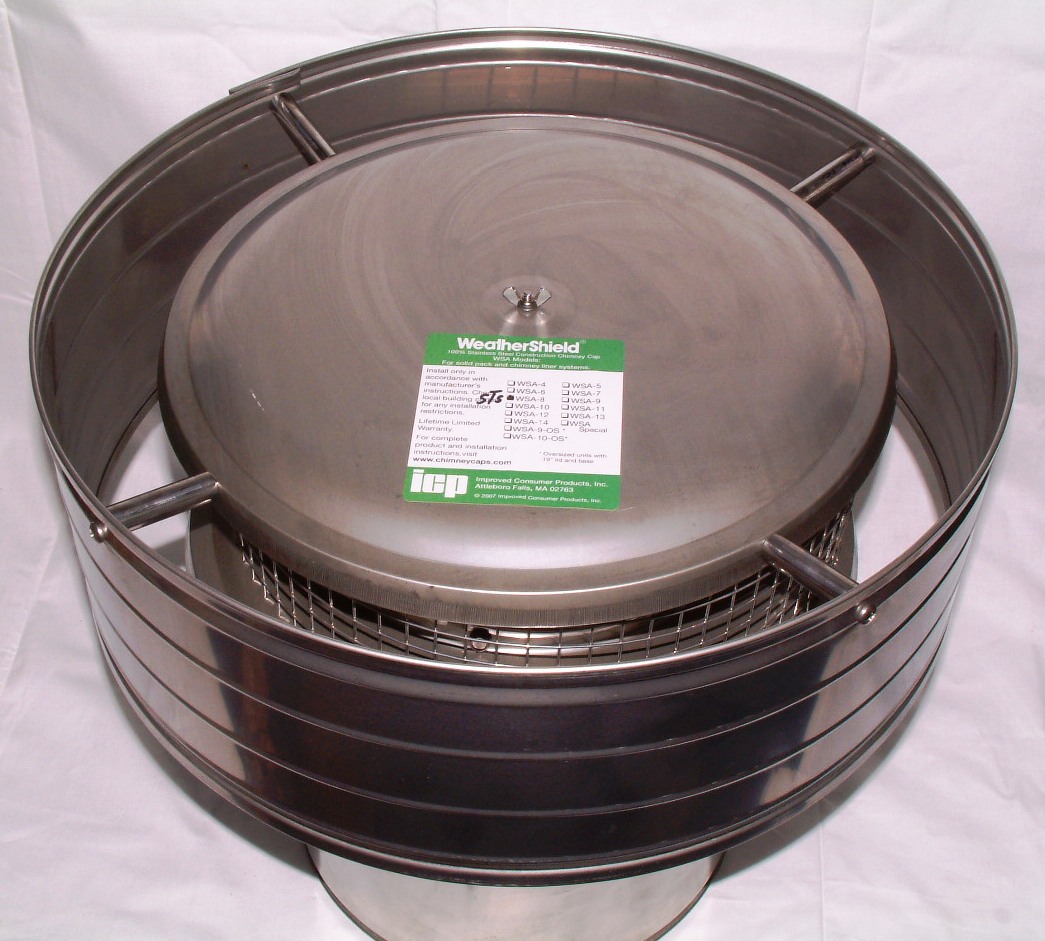

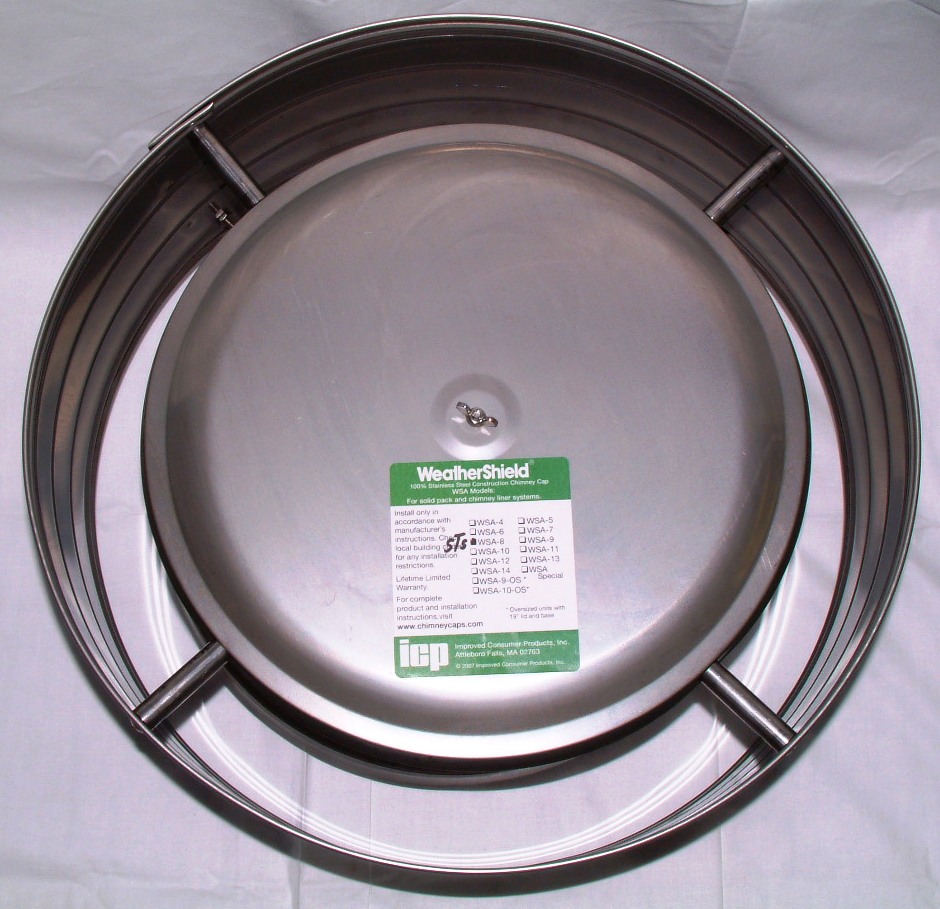

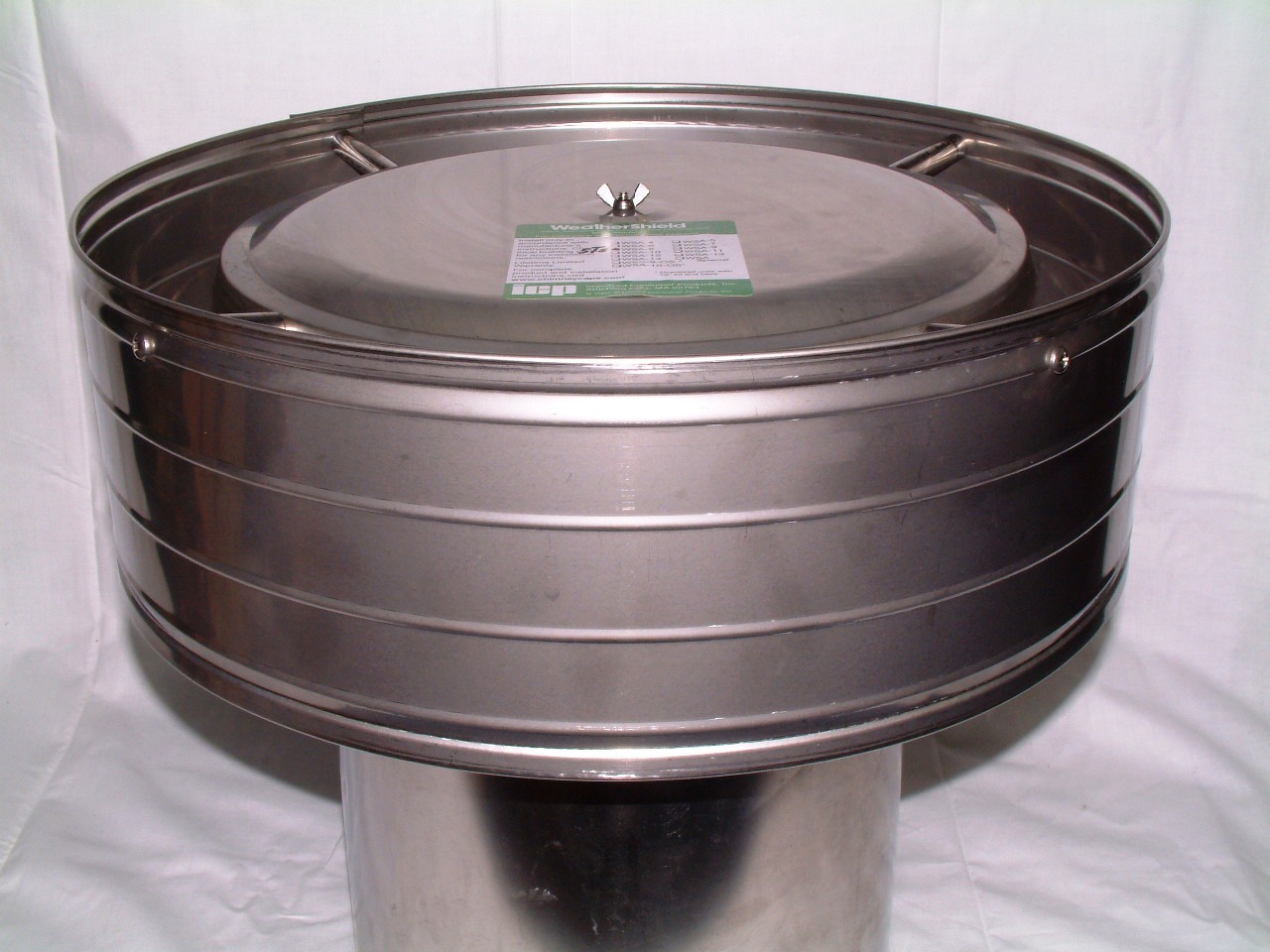

StormShield Model STS
for single wall, chimney liners & Class-A insulated
flue pipe
|
 |
 |
 |
 |
 |
 |
 |

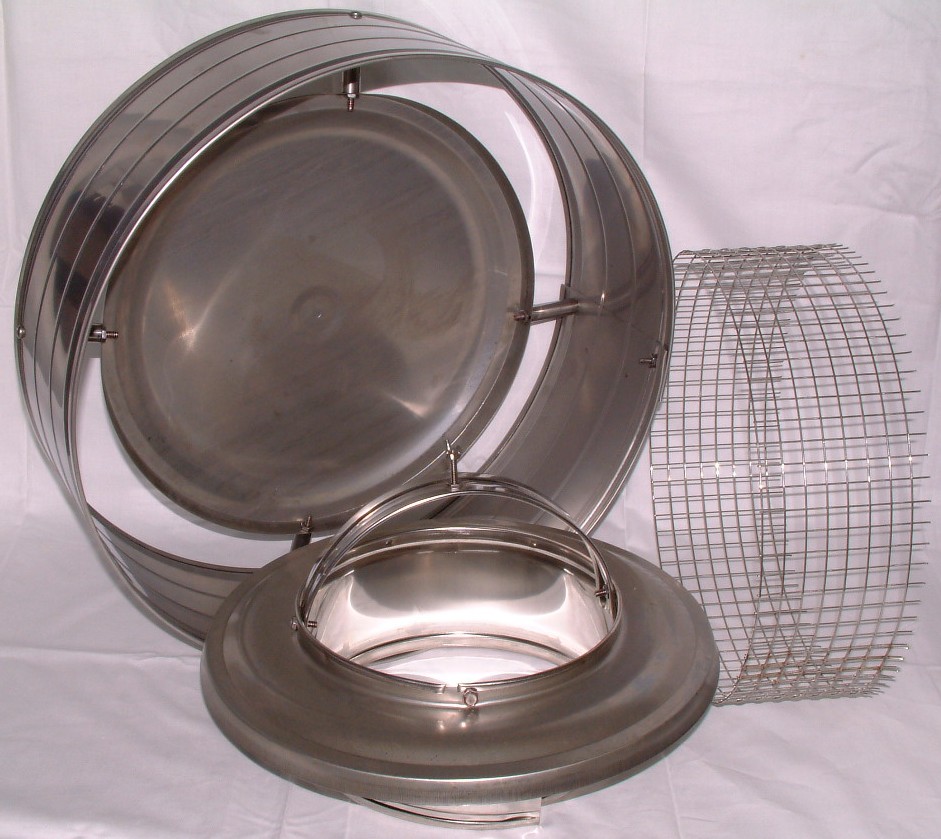

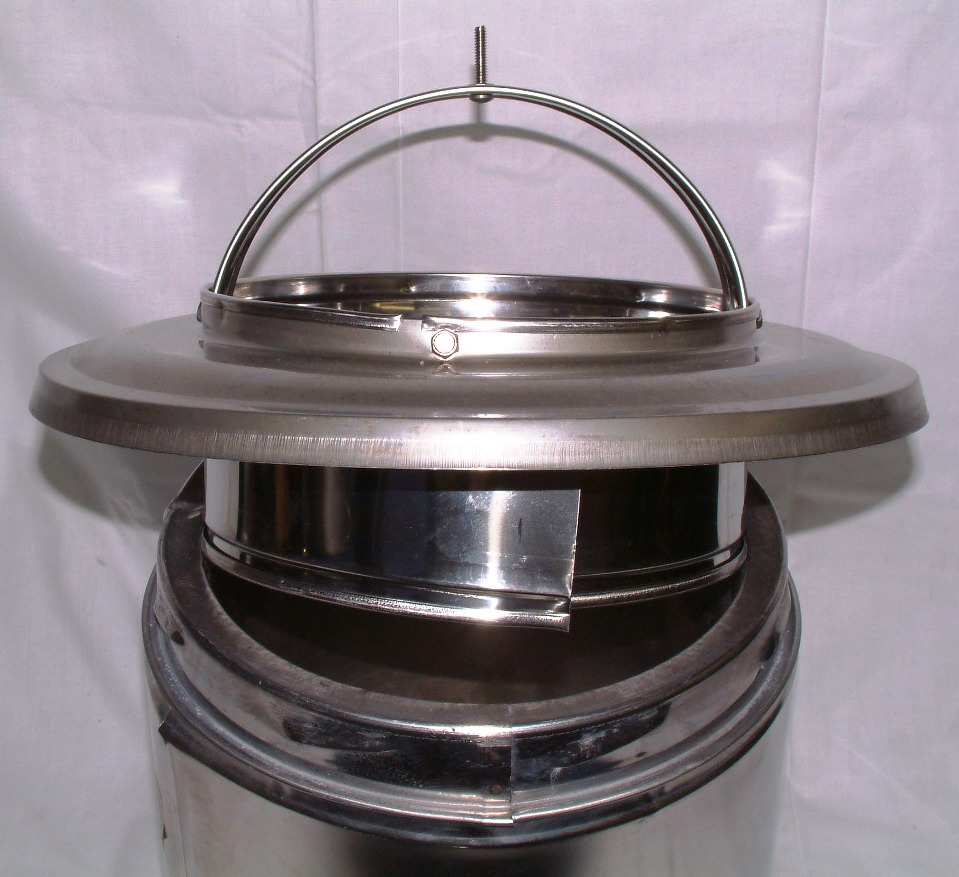

Split collar allows for a secure fit
Easy assembly 100% Stainless |

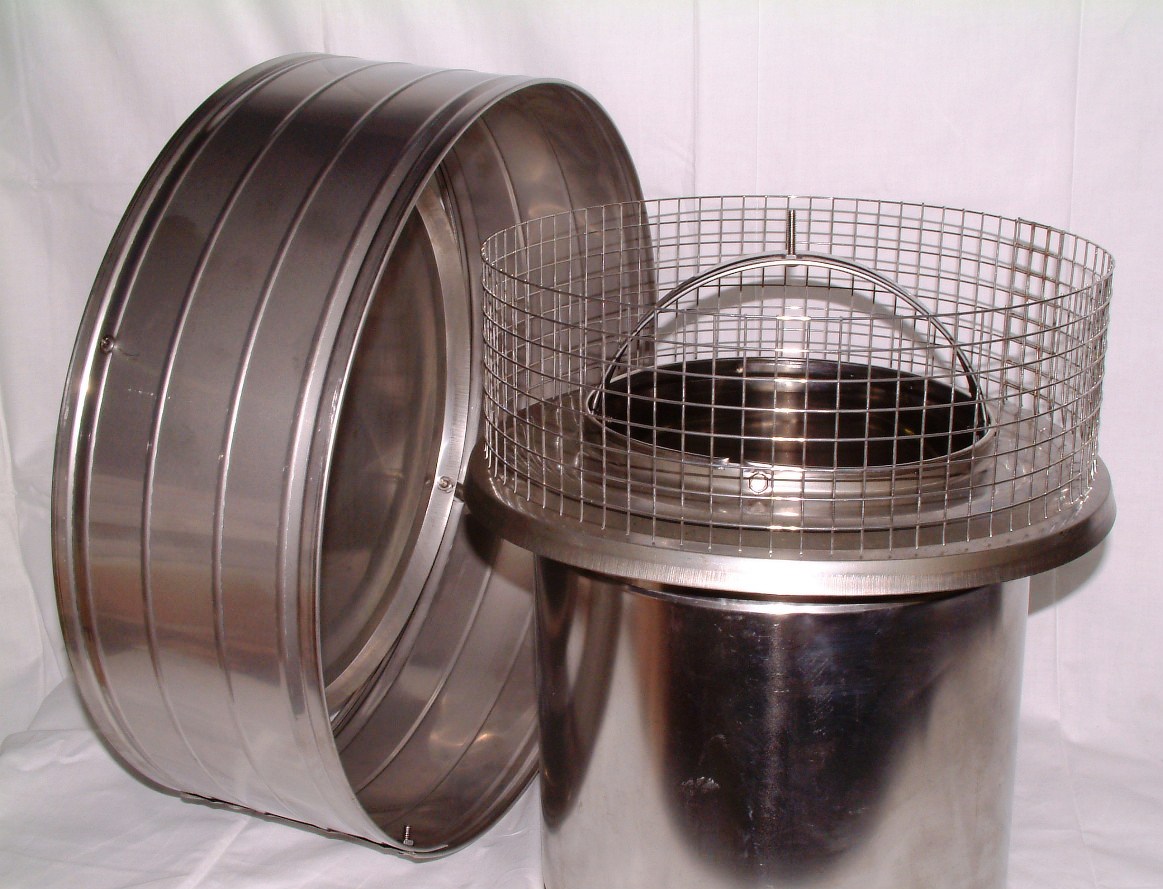

Top w/ Storm Shield is easily removable
for access and cleaning |

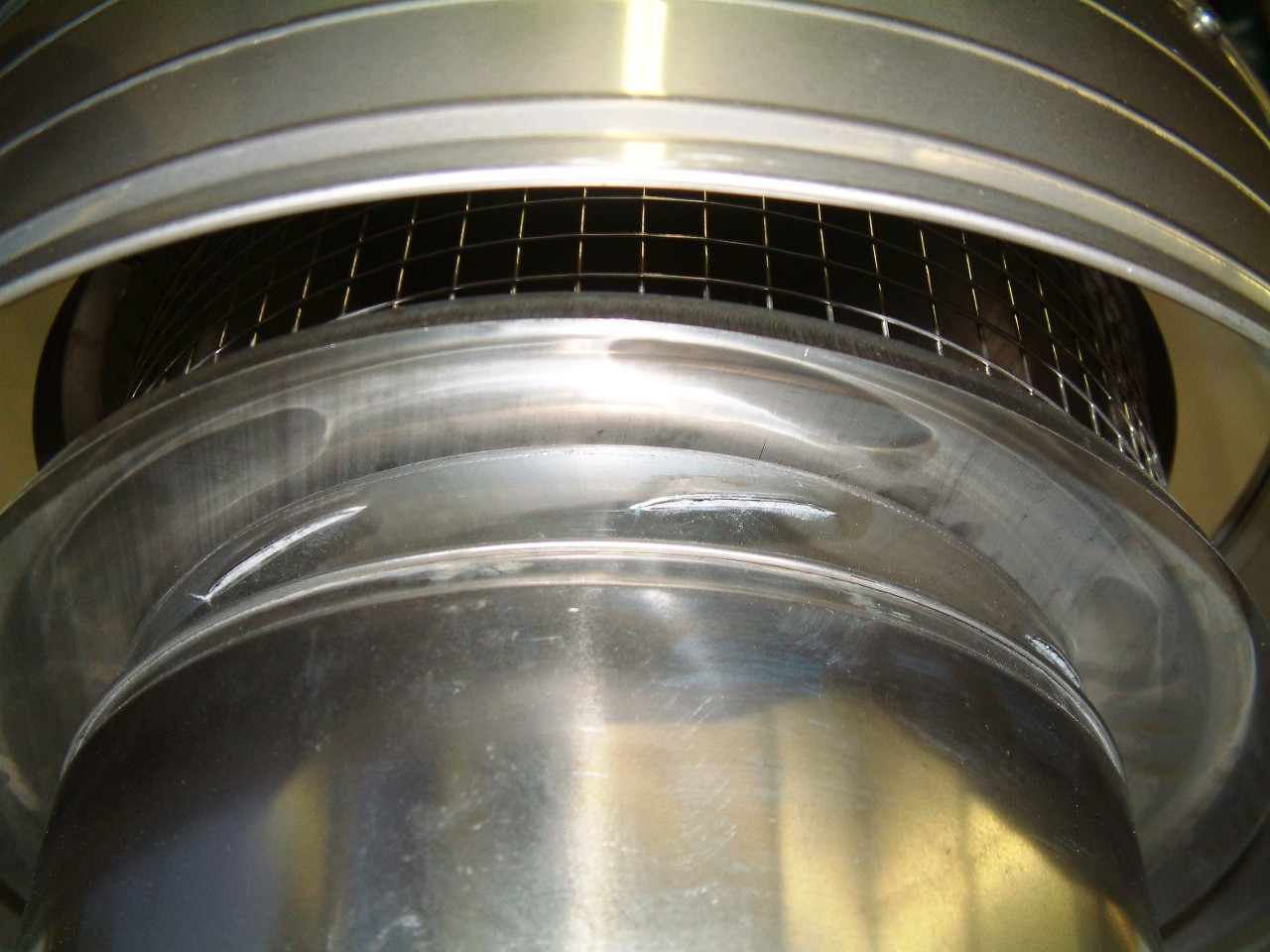

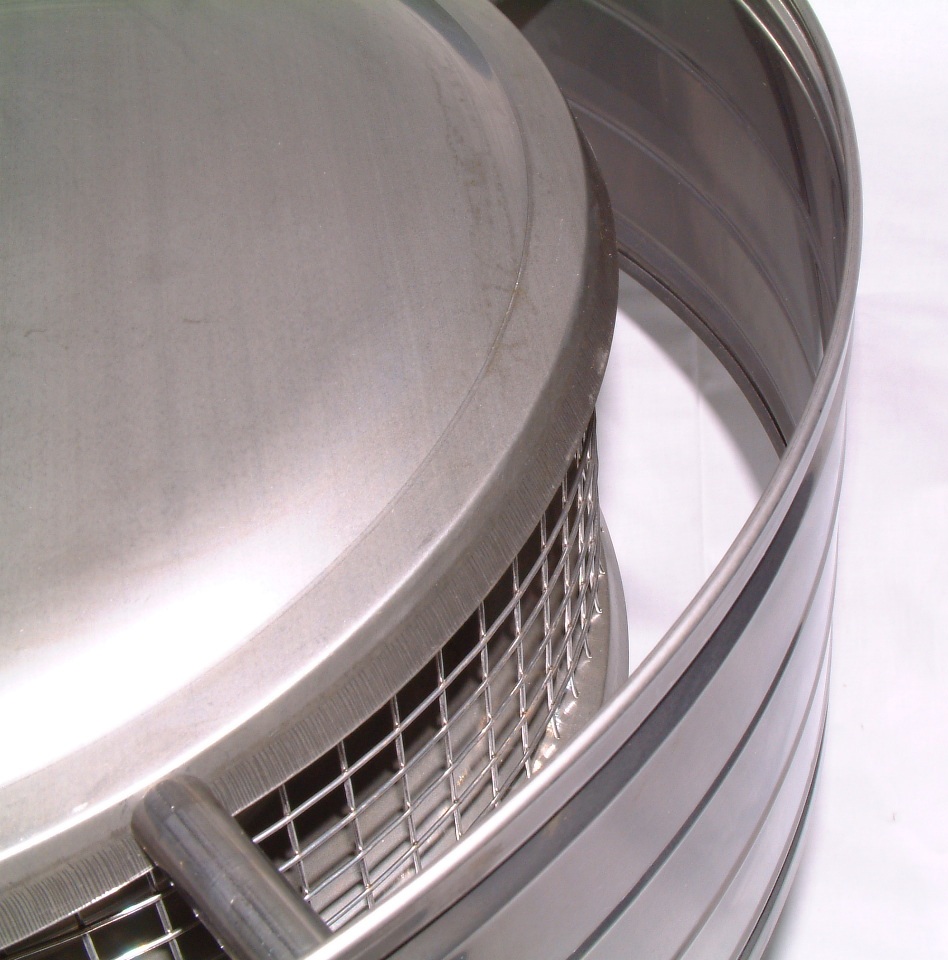

Storm Shield protects flue system
from most weather conditions |

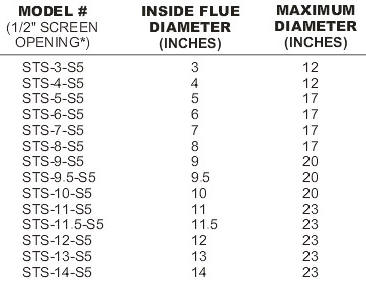

MODEL NUMBER
W/ 1/2 X 1/2 MESH |
INSIDE FLUE
DIAMETER |
MAX. OUTSIDE
FLUE DIAMETER |
| |
|
|
 STS-3-S5 |
3 |
12 |
|
STS-4-S5 |
4 |
12 |
|
STS-5-S5 |
5 |
17 |
|
STS-6-S5 |
6 |
17 |
|
STS-7-S5 |
7 |
17 |
|
STS-8-S5 |
8 |
17 |
|
STS-9-S5 |
9 |
20 |
|
STS-9.5-S5 |
9.5 |
20 |
|
STS-10-S5 |
10 |
20 |
|
STS-11-S5 |
11 |
23 |
|
STS-11.5-S5 |
11.5 |
23 |
|
STS-12-S5 |
12 |
23 |
|
STS-13-S5 |
13 |
23 |
|
STS-14-S5 |
14 |
23 |
|
 |
CAUTION: An Air Cooled Cap
must be used for Air Cooled Pipe.
DO NOT attempt to use a standard WeatherShield or StormShield for air cooled
pipe.
Not sure if you have an
air cooled pipe system... call or e-mail us.
 |
StormShield Model STS-TDW
for air cooled double and triple wall flue pipe
|
 |
Ideal cap for coastal locales and areas where wind and wind
driven rain are prevalent.
 |
 |
 |
 |
 |
 |
Split collar allows for a secure fit
Easy assembly 100% Stainless |
Top w/ Storm Shield is easily removable
for access and cleaning |
Storm Shield protects flue system
from most weather conditions |
MODEL NUMBER
W/ 1/2 X 1/2 MESH |
INSIDE FLUE
DIAMETER |
MAX. OUTSIDE
FLUE DIAMETER |
| |
|
|
|
STS-5-TDW-S5 |
5 |
20 |
|
STS-6-TDW-S5 |
6 |
20 |
|
STS-7-TDW-S5 |
7 |
20 |
|
STS-8-TDW-S5 |
8 |
20 |
|
STS-9-TDW-S5 |
9 |
20 |
|
STS-9.5-TDW-S5 |
9.5 |
20 |
|
STS-10-TDW-S5 |
10 |
20 |
|
STS-11-TDW-S5 |
11 |
23 |
|
STS-12-TDW-S5 |
12 |
23 |
|
STS-13-TDW-S5 |
13 |
27 |
|
STS-14-TDW-S5 |
14 |
27 |
|
 |
|
Sizing for
an air cooled StormShield
Air cooled
flue pipe needs to be measured by its INSIDE measurement.
Typically... an air cooled flue system will consist of
an inner and outer pipe(s) with an air space between them. Some
systems may have braces, wire, tabs or smaller openings between the
layer(s) of pipe. The distinguishing factor for this system is
that the spacing channels from the top where the chimney cap would go
all the way to the start of the flue system.
Note: All layers of pipe need to be at the same level
for proper installation. Most pipe can be trimmed or extended to
accomplish this. |
 |
CAUTION: An Air Cooled
Chimney Cap must be used for Air Cooled Pipe.
DO NOT attempt to use a standard STS StormShield Cap with air cooled pipe.
| |
Air cooled double and triple
wall flue systems need an air cooled chimney cap.
The inner pipe of an air cooled system is for smoke
and flue gases.
... the larger surrounding outer pipe(s) will vary in size depending on
the air space between the pipes and manufacturers design.
This air space needs to be
vented to insure the flue systems proper function.
An air cooled pipe system uses the air space as an insulation
value. The more spacing between the pipes, the less heat to the
outer pipe(s), and the closer one can build to the system. |
